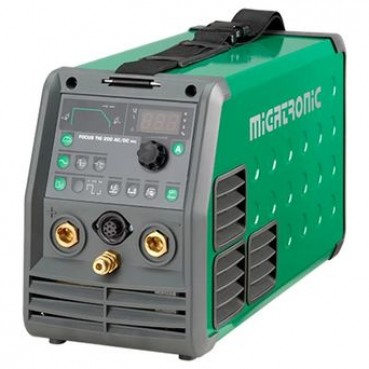

TIG and MMA inverter welding machine
Focus TIG is a reliable single-phase welding machine designed for complex welding operations in the field. You can use it for welding in mild steel, stainless steel and aluminium. There are three different Focus TIG power sources to choose between.
Focus TIG is an excellent welding machine for the fitter. It is ideal for workshop use and on-site welding operations due to its size and the features PFC (Power Factor Correction) and lift-TIG ignition.
Current range : 5-200 A
Mains voltage +/-10% 1 × 230 V : (-40/+10 %)
Fuse type C : 16
Duty cycle 100 %/40 °C (TIG) : 140 A/15.6 V
Duty cycle 60 %/40 °C (TIG) : 170 A/16.8 V
Duty cycle 100 %/20 °C (TIG) : 160 A
Duty cycle 60 %/20 °C (TIG) : 190 A
Open circuit voltage : 90 V
Protection class : IP 23S
Standard : EN/IEC60974 -1. - 3. -10.
Dimensions (H × W × L) : 250 mm × 180 mm × 510 mm
Weight : 13.5 kg
